Main entities to define a power/energy system

Elemental entities (one dimensional):

  • node: maintain a balance between generation, consumption, transfers and storage state changes (nodes can also represent storages)
  • unit: power plants or other conversion devices that take one or more inputs and turn them into one or more outputs
  • connection: transmission lines or other transfer connections between nodes
  • commodity: fuels or other commodities that are either purchased or sold at a price outside of the model scope
  • profile: timeseries that can be used to constraint the behaviour of units, connections or storages
  • reserve: reserve categories to withhold capacity to cope with issues outside of model scope

Entities with two or more dimensions:

  • unit__inputNode and unit__outputNode: defines the inputs, outputs and their properties for the conversion units
  • connection__node__node: defines which nodes a connection will connect
  • unit__node__profile and connection__profile: defines a profile limit (upper, lower or fixed) for an energy flow
  • node__profile: defines a profile limit (upper, lower, or fixed) for the storage state of the node
  • commodity__node: defines if a node is a source or sink for a commodity
  • reserve__upDown__unit__node and reserve__upDown__connection__node: reserve capacity from a source to the target node

See below for more detailed explanations.

Simple example grid

How to define the temporal properties of the model

Timesteps and periods

FlexTool has two different kinds of time varying parameters. The first one represents a regular timeline based on timesteps. The duration of each timestep can be defined by the user. There can be multiple timelines in the database - the user needs to define which timeline to use (and what parts of the timeline should be used, as will be explained later). The timestep names in the timeline are defined by the user - they can be abstract like 't0001' or follow a datetime format of choice. However, the timestep names between different timelines must remain unique (usually there should be only one timeline in a database and therefore no issues).

The second time varying dimension is period, which is typically used to depict assumptions about the future. One model can include multiple solves that the model will solve in sequence (to allow multi-stage modelling). Each solve can include multiple periods (so that the user can change parameter values for different parts of the future).

A parameter of particular type can be either constant/time-varying or constant/period-based. For example inflow is either a constant or time-varying, but it cannot be period-based.

Recommendation — name the Map index for parameters that accept both period and time. A few parameters accept either a period map or a time series (for example the flowGroup min_instant_flow / max_instant_flow limits, which accept "Constant, period, time or period+time"). Period and time Maps look structurally identical in Spine Toolbox — both are 1-dimensional Maps — so FlexTool tells them apart from the Map's index_name. Set it explicitly to period or time when authoring such a Map. If you leave the default (Spine stores it as x), FlexTool falls back to inspecting the Map's index values and matching them against the model's period and timestep names to guess the intended axis; this works when the keys clearly belong to one set, but is ambiguous if they don't, and an ambiguous Map is dropped (the limit is silently not applied). Setting index_name removes the guesswork. (Parameters that accept only one of the two — e.g. inflow is time-only — are never ambiguous and need no index_name.)

Timesets

Timesets pick one or more sections from the timeline to form a timeset. Each timeset defines a start and a duration. The aim of timesets is to allow the modeller to create models with representative periods often used in the investment planning.

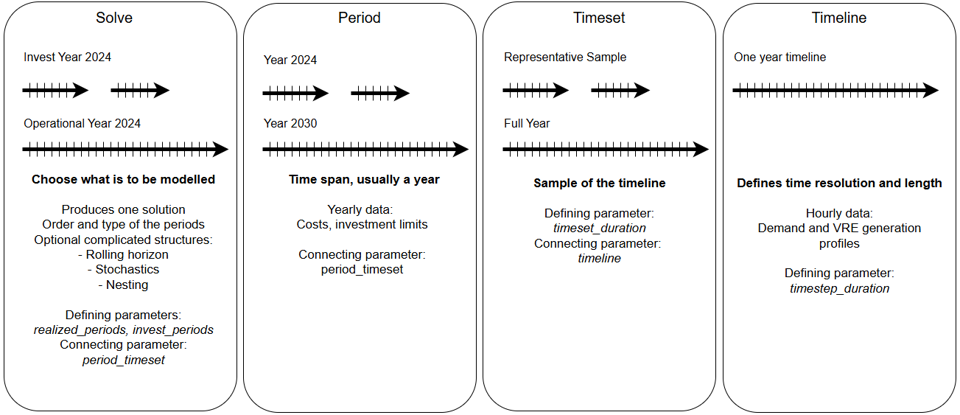

Time structure

Definitions

  • model: model defines the sequence of solves to be performed (e.g. first an investment solve and then a dispatch solve)

  • solves: sequence of solves in the model represented with an array of solve names.

  • inflation_rate: [e.g. 0.02 for 2%] Model-wide inflation rate applied to all future costs. When inputs are in real (constant-price) terms, set to 0 (default). When inputs are in nominal terms, set to expected inflation.
  • inflation_offset_investment: [years] Offset from the period (often year) start to the first payment of the investment cost annuity.
  • inflation_offset_operations: [years] Offset from the period (often year) start to the payment of operational costs.
  • periods_available: (Optional) Array of periods available for the model. Use this for periods that are in the data, but are not in period_timeset.
  • max_flow_for_unconstrained_variables: [MW] Upper bound assigned to LP variables that have no other cap (e.g. flows on edges with invest_method = no_limit and no existing capacity). Acts as a numerical safety net to keep the LP bounded. Default is large; lower it when scaling problems appear (see dev/scaling.md).
  • debug: Instruction set for performing model debugging and testing.

  • version: Database schema version. Written by the migration chain — do not edit manually.

  • solve: each solve is built from an array of periods (e.g. one period for 2025 and another for 2030). Periods use timesets to connect with a timeline. Parameters are split into two parameter-group tags in the master template — solve_basics (knobs a typical user touches) and solve_advanced (rolling/nested/stochastic structures, solver options, cross-solve handoff). The split is purely cosmetic in the Spine DB editor; behaviour is identical.

  • period_timeset: map of periods with associated timesets that will be included in the solve. Index: period name, value: timeset name.

  • new_stepduration: Hours. Creates a new timeline from the old for this solve with this timestep duration. The new timeline will sum or average the other timeseries data like profile and inflow for the new timesteps. All timesets used by the solve must resolve to the same underlying timeline. See also the group-level new_stepduration for flex-temporal decomposition.
  • realized_periods: these are the periods the model will 'realize' - i.e., what periods will be reported in the results from this solve
  • realized_invest_periods Array of the periods that will realize the investment decisions. If this is not defined when the invest_periods exist, the realized_periods are used to realize the invests as well
  • invest_periods: array of periods where investements are allowed in this solve (applies only to entities that can be invested in)
  • years_represented: Map to indicate how many years the period represents before the next period in the solve. Used for discounting. Can be below one (multiple periods in one year). Index: period, value: years.
  • solver: choice of a solver. HiGHS is the default and only fully supported backend (called via the highspy Python bindings). CPLEX can still be wired in as an advanced option for licensed users via solver_precommand / solver_arguments; see the how-to.
  • solver_arguments: Map of solver option name → value, forwarded verbatim to the active solver. This is where the former highs_* shortcuts now live. For HiGHS, set solver to choose the method ('simplex' or 'ipm' which is interior point method; use 'choose' for MIP models, since 'simplex' and 'ipm' will not work), parallel ('on' or 'off') to control parallelisation of single solves (it can be better to turn it off when executing multiple scenarios in parallel), and presolve ('on' or 'off') to toggle presolve (which can have a large impact on solution time when solves are large). These only affect speed, not results.
  • solve_mode: a single solve or a set of rolling optimisation windows solved in a sequence
  • timeline_hole_multiplier: [unitless, default 1.0] Multiplier applied to the inverse-step-duration term in the nodeBalance_eq for variable-step timelines. Tunes how strongly an unrepresented gap between two timesteps is amortised into the storage state equation. Leave at the default unless investigating large-step / sparse-timeline numerical issues.

  • Rolling window parameters:

    • rolling_solve_jump: Hours, (Required if rolling_window solve). Interval between the start points of the rolls. Also the output interval. This should be smaller than the horizon
    • rolling_solve_horizon: Hours, (Required if rolling_window solve). The length of the horizon of the roll. How long into the future the roll sees. For an individual roll, horizon is the solve length and jump is the output length.
    • rolling_duration: Hours, (Optional). Duration of rolling, if not stated, assumed to be the whole timeline of the solve

  • Nested solve sequence parameters:

    • contains_solve: Array of solves that are run with after this solve using the realized data of this solve. Read 'How to use Nested Rolling window solves (investments and long term storage)'
    • fix_storage_periods: Array of periods where this solve produces a storage-state handoff for the contained solve at the end of each listed period. The handoff carries any subset of three metrics — fix_storage_quantity, fix_storage_price, fix_storage_usage — selected per node by the node parameter storage_nested_fix_method.

  • Stochastic parameters:

    • stochastic_branches: 4D-map to set up the stochastic branches, their weights and to choose which of them are realized. See 'How to use stochastics' for more information.

  • For commercial solvers:

    • solver_precommand the commandline text in front of the call for the commercial (CPLEX) solver. For a possibility of reserving a floating licence for the duration of the solve
    • solver_arguments Array of additional commands passed to the commercial solver. Made for setting optimization parameters.

  • timeset: timesets are sets of time with a start (from timeline) and a duration (number of time steps)

  • timeset_duration a map with index timestep_name that starts the timeset and value that defines the duration of the timeset (how many timesteps)

  • timeline The name of the timeline that the timeset uses. (String)

  • timeset_weights: Optional per-timestep weight map (index: timestep name, value: float) applied to cost and slack terms in the objective. Use for non-RP models where timesteps represent unequal fractions of the year — e.g. a coarse OSeMOSYS-style timeslice structure where wet-season steps cover more year-hours than dry-season ones. Weights are normalized per period to sum to 1 and then scaled by the number of active timesteps, so uniform input reproduces weight = 1 per step (the default). Must not be combined with representative_period_weights on the same timeset — the runner errors out if both are set.

  • timeline: continuous timeline with a user-defined duration for each timestep. Timelines are used by time series data.

  • timestep_duration: a map with timestep_name as an index and duration as a value.

  • timeline_duration_in_years Total duration of the timeline in years. Used to relate operational part of the model with the annualized part of the model.

Time structure assumptions

The tool includes some assumptions about the time structure, in case something parts are missing. These will work if there is only one option for the model to choose. The assuptions are the following:

  • If timeset: timeline is not set and only one timeline is defined, it is used
  • If no timeset is exist and only one timeline is defined, create a full timeline timeset
  • If period_timeset is defined, but no realized_periods or invest_periods exists, all periods are realized
  • If period_timeset does not exist and only one timeset exists, create timesets for all realized_periods and invest_periods
  • If model: solves does not exist, and only one solve exists, that it is used
  • If a solve in model: solves does not exist, create a solve where all periods_available are realized

For example in the case above, it would have been possible to not fill the timeset: timeline as there is only one timeline to choose. Leaving out the period_timeset would result in an error as there are multiple timesets to choose.

Nodes

Defining how the node functions

These parameters will define how the node will behave and use the data it is given (available choices are marked in italics):

  • name - unique name identifier (case sensitive)
  • node_type - role of the node in the LP (default balance):
    • commodity - price-exposed source/sink with no balance constraint (fuel imports, no storage)
    • balance - energy balance maintained every timestep
    • storage - balance plus a state variable (battery, reservoir)
    • balance_within_period - balance aggregated over the whole period (e.g. an annual gas budget)
  • invest_method - Choice of investment method: either not_allowed or then a combination of
    • invest and/or retire
    • investment limits for each period and/or for all periods (total) or no_limit
    • cumulative_limits considers investments, retirements and existing together, requires cumulative_max_capacity and/or cumulative_min_capacity
  • inflow_method - choice how to treat inflow time series
    • use_original - does not scale the original time series (no value defaults here)
    • no_inflow - ignores any inserted inflow time series
    • scale_to_annual_flow - will scale the time series to match the annual_flow so that the sum of inflow is multiplied by 8760/hours_in_solve
    • scale_in_proprotion - calculates a scaling factor by dividing annual_flow with the sum of time series inflow (after it has been annualized using timeline_duration_in_years)
    • scale_to_annual_and_peak_flow - scales the time series to match the 'annual_flow' target while transforming the time series to match the highest load with the 'peak_inflow'
  • is_active - is the model/node/unit active in a specific scenario: yes (if not defined, then not active). Only exist in Toolbox 0.7, before 5/2024. It is replaced by Entity Alternative sheet.


Data for nodes

Input data is set with the following parameters:

  • inflow - [MWh] Inflow into the node (negative is outflow). Constant or time series.
  • annual_flow - [MWh] Annual flow in energy units (always positive, the sign of inflow defines in/out). Constant or period.
  • peak_inflow - [MWh] Highest flow for scaling the inflow. Used only with inflow_method = scale_to_annual_and_peak_flow.
  • energy_margin_method - How the node's investment-stage energy margin is applied. Options: none (default, off, no scaling), inflow_multiplier (multiply this node's inflow by energy_margin_multiplier in the investment solve only) and inflow_adder (add energy_margin_adder MWh of extra demand in the investment solve only). See How to add an energy margin for investment adequacy.
  • energy_margin_multiplier - [factor] Multiplier applied to the node's inflow in the investment solve only, when energy_margin_method = inflow_multiplier. Default 1 (no effect). A value of 1.1 makes the investment stage build for ~10% more demand, so the built capacity meets the true demand under the true (lower) annual VRE availability. Dispatch solves always see the true, un-margined inflow. Constant or period.
  • energy_margin_adder - [MWh] Extra demand (negative inflow) added to the node in the investment solve only, when energy_margin_method = inflow_adder. Default 0 (no effect). Adds a fixed amount of demand rather than scaling existing demand, so it also works on a node with no native inflow (e.g. a zero-inflow slack node) where the multiplier is a no-op. Dispatch solves always see the true, un-margined inflow. Constant or period.
  • existing - [MWh] Existing storage capacity (requires node_type=storage). Constant or period.
  • invest_cost - [CUR/kWh] Investment cost for new storage capacity. Constant or period.
  • salvage_value - [CUR/kWh] Salvage value of the storage. Constant or period.
  • lifetime - [years] Life time of the storage unit represented by the node. Constant or period.
  • discount_rate - [e.g. 0.05 equals 5%] Discount rate for investments (WACC). Reflects the financing cost and risk for this technology. Should be nominal when model inflation_rate > 0, real when inflation_rate = 0. Constant or period.
  • invest_max_total - [MWh] Maximum storage investment over all solves. Constant.
  • invest_max_period - [MWh] Maximum storage investment for each period. Period.
  • invest_min_total - [MWh] Minimum storage investment over all solves. Constant.
  • invest_min_period - [MWh] Minimum storage investment for each period. Period.
  • cumulative_max_capacity - [MWh] Maximum cumulative capacity (considers existing, invested and retired capacity). Constant or period.
  • cumulative_min_capacity - [MWh] Minimum cumulative capacity (considers existing, invested and retired capacity). Constant or period.
  • fixed_cost - [CUR/kWh] Annual fixed cost for storage. Constant or period.
  • penalty_up - [CUR/MWh] Penalty cost for energy not served (decreasing consumption) in the node. The cost scales with both the magnitude (MW) and the duration (hours) of the violation. Default value is 10 000. Constant, Period or Time.
  • penalty_down - [CUR/MWh] Penalty cost for excess energy (increasing consumption) in the node. The cost scales with both the magnitude (MW) and the duration (hours) of the violation. Default value is 10 000. Constant, Period or Time.
  • virtual_unitsize - [MWh] Size of a single storage unit - used for integer investments (lumped investments). If not given, assumed from the existing storage capacity.
  • self_discharge_loss - [e.g. 0.01 means 1% every hour] Loss of stored energy over time. Constant or time.
  • availability - [e.g. 0.9 means 90%] Fraction of capacity available for storage. Constant or time.
  • invest_forced - Used by the investment planner to force a specific investment volume in a given period (overrides invest_max_period / invest_min_period for that entry).
  • constraint_state_coeff - A map of coefficients (Index: constraint name, value: coefficient) placing the storage state variable on the left side of a user-defined constraint.
  • constraint_invested_capacity_coeff - A map of coefficients (Index: constraint name, value: coefficient) placing the current period's new-build storage capacity v_invest[node, d] on the left side of a user-defined constraint. Not multiplied by unitsize.
  • constraint_cumulative_pre_built_capacity_coeff - A map of coefficients (Index: constraint name, value: coefficient) placing the cumulative pre-built storage capacity at period d on the left side of a user-defined constraint. Not multiplied by unitsize.

Using nodes as storages

FlexTool manages storages through nodes. A regular node maintains an energy/material balance between all inputs and outputs (node_type=balance). A storage node includes an additional state variable, which means that the node can also use charging and discharging of the storage while maintaining the energy balance. A storage node is created by setting node_type=storage and by adding storage capacity using the existing parameter and/or by letting the model invest in storage capacity (invest_method, invest_cost, invest_max_period and invest_max_total parameters).

Since FlexTool allows different temporal structures (multi-periods, rolling optimization, etc.) there needs to be ways to define how the storages behave when the model timeline is not fully consequtive. By default, storages are forced to match start level to the end level within timesets. This is an acceptable setting for small storages that do not carry meaningful amounts of energy between longer time periods in the model.

There are three methods associated with storage start and end values: storage_binding_method, storage_start_end_method and storage_solve_horizon_method.

  • The most simple one of these is the storage_start_end_method and it overrides the other methods, since it forces the start and/or the end state of the storage to a predefined value based on the proportional parameters storage_state_start and storage_state_end (proportional means that the parameter needs to be set between 0-1 and will be scaled by the storage capacity in the model). These two parameters affect only the first and the last timesteps of the entire model (even when the model has more than one solve).
  • storage_binding_method chooses the cycle-closure scope for the storage state over discontinuities in the model timeline. There are seven cycle-scope methods plus one orthogonal aggregation method. See the parameter description in flextool/schemas/spinedb_schema.json for the canonical enumeration; in short:
    • bind_within_timeblock — state cycles within each timeblock (block start = block end + flows).
    • bind_within_period — state cycles within each FlexTool period; blocks chain inside the period.
    • bind_within_solve — state cycles across the whole solve horizon.
    • bind_forward_only (default) — state chains forward across the solve; no end-to-start closure.
    • bind_within_solve_blended_weights, bind_within_period_blended_weights, bind_forward_only_blended_weights — representative-period variants of the three above. They apply RP weighting on top of the same cycle scope.
    • bind_intraperiod_blocks — orthogonal aggregation method: state is held constant within each block and the block-total flow is balanced at the boundary (uses a different balance constraint family from the other seven).
  • Silent-degrade behaviour: any *_blended_weights method on a node in a solve whose active timeset has no representative_period_weights is automatically downgraded to the corresponding non-RP variant for that solve. The same storage entity can therefore drive an RP investment solve and a chronological dispatch solve back-to-back without changing the parameter value.
  • Migration history: DB schema v54 collapsed the previously array-valued parameter to a single scalar (priority-based reduction). v55 then renamed the three legacy members (bind_within_timeset → bind_within_timeblock, bind_using_blended_weights → bind_within_solve_blended_weights, bind_within_model → bind_within_solve) and added the two new blended-weights variants. Users updating older DBs should run migrate_database to pick up these renames automatically.
  • storage_solve_horizon_method is meant for models that roll forward between solves and have an overlapping temporal window between those solves (e.g. a model with 36 hour horizon rolls forward 24 hours at each solve - those 12 last hours will be overwritten by the next solve). In these cases, the end state of the storage will be replaced by the next solve, but it can be valuable to have some guidance for the end level of storage, since it will affect storage behaviour. There are three methods: free is the default and will simply let the model choose where the storage state ends (usually the storage will be emptied, since it would have no monetary value). use_reference_value will use the value set by storage_state_reference_value to force the end state in each solve to match the reference value. use_reference_price assigns a monetary value (in CUR per energy unit, consistent with other commodity prices) to the storage content at the end of the solve horizon — only at the last (d, t) of each terminal period, not at every roll boundary or every period boundary — using the storage_state_reference_price parameter; the model is then free to choose how much it stores at the end of horizon based on this monetary value. The objective term is negative (−Σ storage_state_reference_price × v_state_end × unitsize × weight_factors), so a higher terminal state reduces the objective, offsetting the operational cost of leaving energy in storage.

Note: reference-price credit is in the solver objective but not in the calculated cost totals. The credit above influences the solver's optimization but is omitted from the costs_discounted_d_p / costs_discounted_p_ parquet files and the summary_solve.csv totals — it is an artificial endogenous valuation, not a real-world cost. End-of-horizon storage valuation has several valid interpretations and is typically computed as post-analysis rather than as part of the reported cost breakdown. If needed, compute the credit from last-timestep v_state values and the storage_state_reference_price parameter yourself.

-Method hierarchy:

  1. storage_start_end_method
  2. storage_binding_method
  3. storage_solve_horizon_method

-Meaning:

  • The storage_binding_method is ignored (exeption bind_forward_only), if storage_start_end_method has the value fix_start_end,
  • The storage_solve_horizon_method use_reference_value is ignored, if other storage state methods are used. Only exeptions are fix_start or bind_forward_only

-Nested Parameters:

  • storage_nested_fix_method: Sets this storage as a long-term storage whose end state at the period boundary is passed to the contained lower-level solve as a constraint. Available choices:
    • fix_nothing (or no) — no handoff for this node (default).
    • fix_quantity — pins the lower solve's storage state at the boundary to the parent-solved level (v_state equality at the last (d, t) of each fix_storage_periods entry, via node_balance_fix_quantity_eq_lower).
    • fix_price — gives the lower solve a per-MWh price tier p_fix_storage_price (taken from the parent solve's v_state dual or from storage_state_reference_price); the lower solve then chooses its own boundary state, paying this price for the energy it holds. Uses the same storage_state_reference_price-driven objective term described in the use_reference_price paragraph.
    • fix_usage — passes the change in storage between the solve start and the boundary (i.e. net energy charged or discharged across the dispatch window) as a less-than-or-equal cap p_fix_storage_usage, enforced by node_storage_usage_fix_le. Useful when the parent solve cares about total throughput rather than the absolute level. A parent solve may set any subset of the three metrics per node — the carriers are independent and each travels as its own handoff/fix_storage_* Provider key.

Units

Units convert energy (or matter) from one form to another (e.g. open cycle gas turbine), but the can also have multiple inputs and/or outputs (e.g. combined heat and power plant). The input nodes are defined with the entity unit--inputNode while the output nodes are defined through the entity unit--outputNode.

Defining how the unit functions

  • 'conversion_method' to define the way unit converts inputs to outputs
  • startup_method - Choice of startup method. 'Linear' startup means that the unit can start partially (anything between 0 and full capacity) but will face startup cost as well as minimum load limit based on the capacity started up. 'Binary' startup means that the unit is committed in whole-unit steps — the online status is a general-integer variable in [0, capacity / unit_size], so the solver must branch on integer commitment. The time penalty relative to linear is not from "binary vs integer" — FlexTool uses one general-integer variable per process per timestep in both binary and the virtual-unitsize cluster form, never N independent 0/1 plants. The penalty comes from the granularity of the decision: if unit_size equals the full plant (say 1000 MW), every on/off flip moves 1000 MW of dispatch, the LP relaxation rounds badly, and primal heuristics struggle. Setting virtual_unitsize to a smaller value (e.g. 50–200 MW) keeps the whole-unit semantics but represents the fleet as finer commitment decisions; this is the clustered-UC form and is normally essential to solve a UC model in reasonable time. See also the How to make the Flextool run faster note.
  • minimum_time_method - Choice between minimum up- and downtimes: none (default, no constraints), min_uptime, min_downtime, both. When set to anything other than none, online variables are automatically activated (at least linear startup) even if startup_method is not explicitly set. This enables the unit commitment tracking needed for minimum time constraints.
  • is_active to state the alternative where the unit becomes active. Only exist in Toolbox 0.7, before 5/2024. It is replaced by Entity Alternative sheet.

Main data items for units

  • Capacity: existing, the maximum sum of outputs flows, (and the investment and retirement parameters below). Constant or period.

  • Technical: efficiency, min_load, efficiency_at_min_load, min_uptime, min_downtime

    • min_uptime - [hours] Minimum time the unit must stay online after starting up. Requires minimum_time_method set to min_uptime or both. The constraint uses a backward-looking formulation that accounts for variable timestep durations. In rolling window models, the solve horizon overlap should be at least as long as the longest min_uptime. Constant.
    • min_downtime - [hours] Minimum time the unit must stay offline after shutting down. Requires minimum_time_method set to min_downtime or both. Same considerations as min_uptime. Constant.

    • min_load - [0-1] Minimum load of the unit. Applies only if the unit has an online variable. With linear startups, it is the share of capacity started up. Constant or time. Calculated for all timesteps:

    • the sum of output flows >= minimum_load * capacity

  • availability - [e.g. 0.9 means 90%] Fraction of capacity available for flows from/to the unit. For online units, the online variable is multiplied by the availability. Constant or time.

  • Economic: startup_cost, fixed_cost (fuel cost comes through the use of fuel commodities and other variable costs are defined for flows between unit and node, see below)

Investment parameters for capacity expansion

  • invest_method - Choice of investment method: either not_allowed or then a combination of
    • invest and/or retire
    • investment limits for each period and/or for all periods (total) or no_limit
    • cumulative_limits considers investments, retirements and existing together, requires cumulative_max_capacity and/or cumulative_min_capacity
  • lifetime_method to choose how the investments behave after unit runs out of lifetime. Automatic reinvestment (reinvest_automatic - default) causes the model to keep the capacity until the end of model horizon and applies the annualized investment cost until the end of model horizon without further choice by the model. Choice of reinvestment (reinvest_choice) removes the capacity at the end of the lifetime and the model needs to decide how much new capacity is to be built. One-shot investment (no_investment) allows the model to invest freely within the first-period lifetime window (subject to the usual invest_method / invest_max_period caps) but pins v_invest to zero for any period after that window — the asset retires once and cannot be rebuilt. Use for physical one-off additions such as plant refurbishments that cannot be repeated at the same cost. If there is a need to remove the possibility to invest after lifetime, then the investment limits can be used.
  • invest_cost - [CUR/kW] Investment cost for new capacity. Constant or period.
  • salvage_value - [CUR/kW] Salvage value of the unit capacity. Constant or period.
  • lifetime - [years] Lifetime of the unit. Constant or period.
  • discount_rate - [e.g. 0.05 equals 5%] Discount rate for investments (WACC). Reflects the financing cost and risk for this technology. Should be nominal when model inflation_rate > 0, real when inflation_rate = 0. Constant or period.
  • invest_max_total - [MW] Maximum capacity investment over all solves. Constant.
  • invest_max_period - [MW] Maximum capacity investment for each period. Period.
  • invest_min_total - [MW] Minimum capacity investment over all solves. Constant.
  • invest_min_period - [MW] Minimum capacity investment for each period. Period.
  • retire_cost - [CUR/kW] Retirement cost for new capacity. Constant or period.
  • retire_max_total - [MW] Maximum capacity retirement over all solves. Constant.
  • retire_max_period - [MW] Maximum capacity retirement for each period. Period.
  • retire_min_total - [MW] Minimum capacity retirement over all solves. Constant.
  • retire_min_period - [MW] Minimum capacity retirement for each period. Period.
  • cumulative_max_capacity - [MW] Maximum cumulative capacity (considers existing, invested and retired capacity). Constant or period.
  • cumulative_min_capacity - [MW] Minimum cumulative capacity (considers existing, invested and retired capacity). Constant or period.
  • fixed_cost - [CUR/kW] Annual fixed cost for capacity. Constant or period.
  • delay - [hours] A time delay between the input nodes and the output nodes of the unit. Either a constant or a period value. Used when modelling process delays (e.g. heat-storage charge cycles or production lag).
  • constraint_invested_capacity_coeff - A map of coefficients (Index: constraint name, value: coefficient) placing this unit's current-period new-build capacity v_invest[unit, d] on the left side of a user-defined constraint. Not multiplied by unitsize.
  • constraint_cumulative_pre_built_capacity_coeff - A map of coefficients (Index: constraint name, value: coefficient) placing the cumulative pre-built capacity at period d (baseline plus investments in periods strictly before d, retirements ignored) on the left side of a user-defined constraint. Not multiplied by unitsize.
  • virtual_unitsize - [MW] Size of a single unit — used for integer investments (lumped investments) and, in conjunction with startup_method = binary, for unit commitment granularity. Set this to the actual physical sub-unit size (e.g. the size of one boiler, turbine, string or module inside the modeled entity). If not given, the value of existing is used, which means every commitment decision moves the full plant — correct only when the modeled entity is inherently a single indivisible unit.
    • FlexTool represents unit commitment with a single general-integer variable per process per timestep, counting how many sub-units are online. Its upper bound is capacity / unit_size_for_commitment, where unit_size_for_commitment is virtual_unitsize if set, otherwise the physical existing capacity. So a plant with existing = 1000 MW and virtual_unitsize = 200 MW is literally the same MIP as a plant with existing = 1000 MW built from five physical 200 MW units (commitment variable ∈ [0, 5]).
    • virtual_unitsize is not a free tuning knob. Picking a value smaller than the real sub-unit size (e.g. 50 MW for a plant whose boilers are actually 200 MW) lets the solver commit fractions that don't physically exist, mis-representing minimum load, startup fuel use and minimum-uptime/downtime behavior. Pick the value that reflects reality. If reality genuinely is a single 1 GW boiler, accept the slower MIP or use startup_method = linear; see How to make the Flextool run faster for the trade-offs.


Discount calculations

Each asset that can be invested in should have invest_cost, lifetime and discount_rate parameters set and could have an optional fixed_cost. These are used to calculate the annuity of the investment. Annuity is used to annualize the investment cost, since FlexTool scales all costs (operational, investment and fixed) to annual level in order to make them comparable. Annuity is calculated as follows:

invest_cost * discount_rate / { 1 - [ 1 / ( 1 + discount_rate ) ] ^ lifetime } + fixed_cost

The next step is to consider inflation adjustment - future costs are adjusted to a common price base. There is a model-wide assumption for the inflation_rate. By default it is 0 (i.e. no inflation, real inputs), but it can be changed through the inflation_rate parameter set for the flexTool model entity. The inflation adjustment factor for every period in the model is calculated from the inflation_rate using the years_represented parameter of each solve, which defines how many years the period represents. Values for years_represented are used to calculate how many years_from_solve_start each year is. The formula is:

[ 1 / ( 1 + inflation_rate ) ] ^ years_from_solve_start

Operational costs are also adjusted for inflation using the same inflation_rate. However, with operational costs it is assumed that they take place on average at the middle of the year whereas investment costs are assumed to take place at the beginning of the year (they are available for the whole year). These can be tweaked with the inflation_offset_investment and inflation_offset_operations parameters (given in years). Please note that given this formulation, invest_cost should be the overnight built cost (as is typical in energy system modelling, the model does not assume any construction time - the financing costs of the construction period need to be included in your cost assumptions).

The model has a model horizon based on the years_represented parameters. The model will not include investment annuities after the model horizon (in other words, the investments are 'returned' at the end of the model horizon). Naturally also operational costs are included only until the end of the model horizon.

Finally, the retirements work similar to investments using the same inflation_rate and discount_rate parameters but with salvage_value as the benefit from retiring the unit.

Entities between units and nodes

  • If the unit’s outputs are flowing into the node, the node acts as output for the unit.
  • If the unit’s inputs are flowing out of the node (into the unit), the node acts as input for the unit.
  • Not all units necessary have both an input and an output node. E.g. VRE generators have only output nodes and their generation is driven by profiles

Properties of unit--inputNode and unit--outputNode entities

  • is_non_synchronous - Chooses whether the unit is synchronously connected to this node.
  • conversion_flow_coeff - [factor, default 1] Fuel-equivalent energy per unit of this flow's native units. Multiplied into the flow on both sides of the node-balance equation and conversion_indirect: for an indirect-method unit, Σ v_flow_source × source_flow_coef = Σ v_flow_sink × sink_flow_coef × slope + section × online, i.e. higher coefficient = more fuel consumed per unit of this edge. Use for fuel-grade energy scaling (e.g. fuel₂ = 2 MWh per flow-unit → conversion_flow_coeff = 2), CHP output weighting (a premium electricity output that costs more fuel per unit can have a higher coefficient than a byproduct heat output), or unit-of-measurement conversions. Setting conversion_flow_coeff = 0 removes the edge from every per-edge capacity / ramp / min-load constraint — the hydro-pass-through pattern. Constant.
  • capacity_max_coeff - [factor, default 1] Fraction of the unit's capacity available to this edge's upper cap. Applied in maxFlow, maxFromSource, maxToSource (reverse-direction 2-way), minToSink_1var (reverse-direction 2-way 1-var cap), and the ramp constraints (both up and down — the ramp limit always scales by the capacity ceiling). Constant.
  • capacity_min_coeff - [factor, default 1] Fraction of the unit's capacity imposed as a lower cap on this edge when online — combined multiplicatively with the unit-level min_load. Applied in minFlow_minload, minFromSource_minload, and minToSource (the ramp constraints use capacity_max_coeff, not this, in both directions). Set to 0 to remove the lower cap on this edge (e.g. heat output of an extraction CHP that may fall to zero in pure-condensing mode). Constant.

Typical use patterns for the three coefficients:

case flow max_cap min_cap
standard unit, 1 source + 1 sink 1 (default) 1 (default) 1 (default)
hydro pass-through (water sink on hydro plant) 0 any (skipped) any (skipped)
extraction CHP, electricity output (premium, costs more fuel per unit) 2 (say) 1 1 (elec must produce min_load when online)
extraction CHP, heat output (byproduct, cheap per unit of fuel) 0.2 (say) 1 (allow full-heat mode) 0 (allow zero-heat pure-condensing mode)
multi-fuel input, high-energy grade (e.g. 2 MWh per flow unit) 2 0.5 (= 1 / flow) to preserve per-fuel capacity cap 0.5

Note that in the case of unit--outputNode the conversion_flow_coeff affects after the capacity and the other unit constraints — it only shows up in the node balance and in the fuel/efficiency equation. The capacity caps themselves are set by capacity_max_coeff and capacity_min_coeff. - other_operational_cost - [CUR/MWh] Other operational variable costs for energy flows. Constant, period or time. - inertia_constant - [MWs/MW] Inertia constant for a synchronously connected unit to this node. Constant. - ramp_method - Choice of ramp method. 'ramp_limit' poses a limit on the speed of ramp. 'ramp_cost' poses a cost on ramping the flow (NOT FUNCTIONAL AS OF 19.3.2023). - ramp_cost - [CUR/MW] Cost of ramping the unit. Constant. - ramp_speed_up - [per unit / minute] Maximum ramp up speed. Constant. - ramp_speed_down - [per unit / minute] Maximum ramp down speed. Constant. - constraint_flow_coeff - A map of coefficients (Index: constraint name, value: coefficient) placing this flow variable on the left side of a user-defined constraint. Applied per timestep to the directional flow between the unit and the node.

Units constrained by profiles

Some generators (e.g. VRE) are not converting energy from one node to the other. Instead, their generation is determined (or limited) by a specific generation profile set by a profile entity with a profile_method, thats state whether the profile forces an upper_limit, lower_limit or equality. Finally profile entity is given a profile time series (or it can also be a constant). One needs to use node__profile, unit__node__profile or connection__profile to apply the profile to specific energy flow (or storage state in the case of node__profile).

Connections

Connections can transfer energy between two nodes. Parameters for the connection are defined in the connection entity, but the two nodes it connects are defined by establishing an entity between connection--leftNode--rightNode.

Defining how the connection functions

  • transfer_method to define the way the connection transfers energy between the nodes
  • startup_method where linear startup means that the unit can start partially (anything between 0 and full capacity) but will face startup cost as well as minimum load limit based on the capacity started up. binary startup means that the unit is either off or fully on, but it is computationally more demanding than linearized startups.
  • invest_method to define investment and retirement limits: either not_allowed or then a combination of
    • invest and/or retire
    • investment limits for each period and/or for all periods (total) or no_limit
    • cumulative_limits considers investments, retirements and existing together, requires cumulative_max_capacity and/or cumulative_min_capacity
  • lifetime_method to choose how the investments behave after unit runs out of lifetime. Automatic reinvestment (reinvest_automatic - default) causes the model to keep the capacity until the end of model horizon and applies the annualized investment cost until the end of model horizon without further choice by the model. Choice of reinvestment (reinvest_choice) removes the capacity at the end of the lifetime and the model needs to decide how much new capacity is to be built. One-shot investment (no_investment) allows the model to invest freely within the first-period lifetime window (subject to the usual invest_method / invest_max_period caps) but pins v_invest to zero for any period after that window — the asset retires once and cannot be rebuilt. Use for physical one-off additions such as plant refurbishments that cannot be repeated at the same cost. If there is a need to remove the possibility to invest after lifetime, then the investment limits can be used.
  • is_active to state the alternative where the connection becomes active. Only exist in Toolbox 0.7, before 5/2024. It is replaced by Entity Alternative sheet.

Main data items for connections

  • existing - [MW] Existing capacity. Constant or period.
  • efficiency - [factor, typically between 0-1] Efficiency of a connection. Constant or time.
  • delay - [hours] A time delay between the input node and the output node of the connection. Works only with transfer_method = no_losses_no_variable_cost.
  • startup_cost - [CUR/MW] Cost of starting up one MW of virtual capacity (used when startup_method activates online variables on the connection).
  • reactance - [p.u.] Per-unit reactance of the transmission line. Used for DC power flow when the enclosing group__node has transfer_method = dc_power_flow_with_angles.
  • constraint_invested_capacity_coeff - A map of coefficients (Index: constraint name, value: coefficient) placing the current period's new-build capacity v_invest[e, d] on the left side of the user-defined constraint. Not multiplied by unitsize. Renamed from constraint_capacity_coefficient; the old expression summed v_invest once per active investment period, giving incorrect results in multi-period models — this one emits just v_invest[e, d].
  • constraint_cumulative_pre_built_capacity_coeff - A map of coefficients (Index: constraint name, value: coefficient) placing the cumulative pre-built capacity at period d — data baseline plus every v_invest made in periods strictly BEFORE d, retirements ignored — on the left side of the user-defined constraint. Enables learning-effect and period-over-period growth limits (pair with constraint_invested_capacity_coeff on the same constraint). Not multiplied by unitsize.
  • other_operational_cost - [CUR/MWh] Other operational variable cost for trasferring over the connection. Constant, period or time.
  • fixed_cost - [CUR/kW] Annual fixed cost. Constant or period.
  • invest_cost - [CUR/kW] Investment cost for new 'virtual' capacity. Constant or period.
  • discount_rate - [e.g. 0.05 equals 5%] Discount rate for investments (WACC). Reflects the financing cost and risk for this technology. Should be nominal when model inflation_rate > 0, real when inflation_rate = 0. Constant or period.
  • lifetime - [years] Used to calculate annuity together with discount rate. Constant or period.
  • other investment parameters: invest_max_total, invest_max_period, invest_min_total, invest_min_period, salvage_value
  • is_DC - A flag whether the connection is DC (the flow will not be counted as synchronous if there is a non_synchronous_limit). Default false.
  • virtual_unitsize - [MW] Size of single connection - used for integer (lumped) investments.
  • availability - [e.g. 0.9 means 90%] Fraction of capacity available for connection flows. Constant or time.

Investment parameters for connections

These are the same as for units, see here

connection__node (per-endpoint properties)

On the membership entity between a connection and one of its endpoint nodes:

  • constraint_flow_coeff - A map of coefficients (Index: constraint name, value: coefficient) placing this connection-to-node flow variable on the left side of a user-defined constraint. Applied per timestep.

Commodities

Some nodes can act as a source or a sink of commodities instead of forcing a balance between inputs and outputs. To make that happen, commodities must have a price and be connected to those nodes that serve (or buy) that particular commodity at the given price. In other words, commodity is separate from node so that the user can use the same commodity properties for multiple nodes. Commodities can also have a co2_content. The commodity and its nodes are connected by establishing a new entity between the commodity and each of its nodes (e.g. coal--coal_market).

  • price - [CUR/MWh or other unit] Price of the commodity. Constant, period or time.
  • co2_content - [CO2 ton per MWh] Constant.
  • price_method - How the commodity price enters the LP. price (default) treats price as the marginal cost of every traded MWh. price_ladder_annual / price_ladder_cumulative activate a stepped supply curve authored via the parameters below; the engine then represents commodity trade as a sum of tier variables, one per ladder step.
  • price_ladder_annual - Stepped supply curve for price_method = price_ladder_annual. 2d map of (tier, period) → price/volume entries.
  • price_ladder_cumulative - Stepped supply curve for price_method = price_ladder_cumulative. 2d map with rolling cumulative breakpoints.
  • unitsize - Numeric scaling for the v_trade variable (analogous to virtual_unitsize on units). Used with the price-ladder methods to keep tier-step variables well scaled; default 1.0.


Groups

Groups are used to make constraints that apply to a group of nodes, units and/or connections. A group is defined by creating a group entity and then creating an entity between the group and its members. The membership entity classes are group__node, group__unit, group__connection and reserve__upDown__group. The choice of group members depends on what the group is trying to achieve. For instance a group that limits investments could have a set of units included in the group.

Flow aggregation (flow limits and aggregated flow outputs) lives on a separate flowGroup class with its own 3-dim membership classes flowGroup__unit__node and flowGroup__connection__node; see that section below.

Capacity limits for nodes, units and connections

  • invest_method - the choice of method how to limit or force investments in capacity [MW or MWh] of the group members
  • invest_max_total - [MW or MWh] Maximum investment to the virtual capacity of a group of units or to the storage capacity of a group of nodes. Total over all solves.
  • invest_max_period - [MW or MWh] Maximum investment per period to the virtual capacity of a group of units or to the storage capacity of a group of nodes.
  • invest_min_total - [MW or MWh] Minimum investment to the virtual capacity of a group of units or to the storage capacity of a group of nodes. Total over all solves.
  • invest_min_period - [MW or MWh] Minimum investment per period to the virtual capacity of a group of units or to the storage capacity of a group of nodes.

Transfer method override for connections in a group

  • transfer_method - Overrides the transfer_method chosen on each individual connection whose both endpoints belong to this group (group__node). Options: use_connection_transfer_methods (default, no override), no_losses_no_variable_cost, regular, exact, variable_cost_only, unidirectional, dc_power_flow_with_angles. The connection-level options work exactly as in the connection reference; dc_power_flow_with_angles activates B-theta DC power flow on the subnet and requires each member connection to have reactance.
  • base_MVA - [MVA] Base power for the per-unit system used in DC power flow. Default 100. Only relevant when this group's transfer_method = dc_power_flow_with_angles.
  • reference_node - Name of the reference bus node (angle fixed to zero) for DC power flow. Optional; if not set the engine picks one deterministically.
  • candidate_precapacity_to_avoid_big_m - [MW] Small pre-existing capacity assigned to investment-candidate connections in DC power-flow subnets to avoid big-M angle constraints. Tuning parameter for numerical stability of the angle formulation.

Limits for nodes

  • has_inertia - A flag whether the group of nodes has an inertia constraint active.
  • inertia_limit - [MWs] Minimum for synchronous inertia in the group of nodes. Constant or period.
  • penalty_inertia - [CUR/MWs] Penalty for violating the inertia constraint. The cost scales with the duration of the violation. Constant or period.
  • has_non_synchronous - A flag whether the group of nodes has the non-synchronous share constraint active.
  • non_synchronous_limit - [share, e.g. 0.8 means 80%] The maximum share of non-synchronous generation in the node group. Constant or period.
  • penalty_non_synchronous - [CUR/MWh] Penalty for violating the non synchronous constraint. Constant or period.
  • capacity_margin_method - How the group of nodes enforces a capacity margin constraint in the investment mode. Options: none (default, no constraint) and manual (require the group to have capacity_margin MW of capacity above the peak net load).
  • capacity_margin - [MW] How much capacity a node group is required to have in addition to the peak net load in the investment time series. Used only by the investment mode when capacity_margin_method = manual. Constant or period.
  • penalty_capacity_margin - [CUR/kW] Penalty for violating the capacity margin constraint. Uses operational discounting (not annualized over lifetime like investment costs), so a penalty of e.g. 1000 CUR/kW is not comparable to an investment cost of 1000 CUR/kW which would be annualized to a much lower annual cost. Constant or period.
  • share_loss_of_load - Force the upward slack of the nodes in this group to be equal or inflow (demand) weighted

CO2 costs and limits

  • co2_method - Choice of the CO2 method or a combination of methods: no_method, price, period, total, price_period, price_total, period_total, price_period_total.
  • co2_price [CUR/ton] CO2 price for a group of nodes. Constant or period. A period-indexed Map may cover more periods than the current solve realises — extra entries are silently ignored, so the same shared CO2-price dataset can drive solves with different period subsets. If the active solve activates co2_price topology (a priced commodity is wired up) but no co2_price or co2_content value is supplied for a needed period, the engine logs a warning and skips the CO2 cost term for that period rather than raising an error.
  • co2_max_period [tCO2] Annualized maximum limit for emitted CO2 in each period.
  • co2_max_total [tCO2] Maximum limit for emitted CO2 in the whole solve.

Stochastics

  • include_stochastics Flag to choose if stochastic timeseries are to be used for the units/nodes/connections of this group

Decomposition (spatial Benders)

  • decomposition_method (on group) - Decomposition strategy to apply to this group. Currently supported: none (no decomposition; default) and benders_regional (the group becomes a spatial region when a solve sets decomposition = benders — the _region suffix emphasises that this is the geographic flavour, distinct from any future temporal variant). See dev/decomposition.md for the algorithm, gap tolerances, and the membership classes the decomposer expects.
  • decomposition (on solve) - Whether this solve decomposes. none (default) solves monolithically; benders routes the solve through the spatial Benders coordinator (master trade flows + trade invest + per-region recourse, optimality cuts) over the benders_regional groups. Chosen per solve, so one chain can mix schemes. The optional knobs benders_max_iter (default 50) and benders_tolerance (default 1e-3) cap the cut loop and set the relative optimality-gap threshold.

Flex-temporal decomposition (per-group step duration)

  • new_stepduration - Hours. Members of this group operate at this step duration in the LP. Overrides the solve-level new_stepduration for the entities in this group. Enables mixed-resolution dispatch (e.g. hourly electricity on default-resolution nodes, daily hydrogen on a coarsened group). See the per-entity blocks logic in engine_polars for how block-aware constraints handle the mix.

Controlling outputs

Two group-level flags drive the extra outputs computed from a node group, and the flow_aggregator method (on the flowGroup class) drives the flow-aggregation outputs. Each has a specific intent and requires a matching membership class; setting it without the right members yields an empty result (the runner will log a warning).

You want … Set this on … Must contain
Summary metrics (loss of load, VRE share, curtailment, excess load, annualised inflow) for a collection of nodes print_indicators: yes on group group__node rows
A per-timestep in/out decomposition (group_flow_t) of a node collection, one column per contributing process/connection print_dispatch: yes on group group__node rows
Member flows shown as aggregated bands inside a node group's dispatch table flow_aggregator: dispatch_plots_only on flowGroup flowGroup__unit__node or flowGroup__connection__node rows
The flowGroup's own aggregated outputs (per-period cumulative_flow/average_flow plus a signed net-flow timewise series) flow_aggregator: standalone_aggregator_only on flowGroup flowGroup__unit__node or flowGroup__connection__node rows
Both of the above flow_aggregator: both on flowGroup flowGroup__unit__node or flowGroup__connection__node rows
  • print_indicators (on group) — emits aggregate indicator metrics (loss-of-load share, VRE share, curtailment share, excess-load share and annualised inflow) over the node members. Acts as a summary of the node group. Requires group__node members.
  • print_dispatch (on group) — emits the per-timestep in/out decomposition of the node group, with one column per contributing process or connection (units feeding the group, connections crossing its boundary, storage, slacks). Requires group__node members. If any of those contributing flows belong to a flowGroup whose flow_aggregator is dispatch_plots_only or both, their columns are replaced by a single aggregated band named after the flowGroup.

See Flow groups (flowGroup) for the flow_aggregator method values and the flow-limit parameters.

Flow groups (flowGroup)

A flowGroup aggregates a set of flows — where each flow is a (process, node) arc. Members are declared through the 3-dim membership classes flowGroup__unit__node and flowGroup__connection__node. A flowGroup carries the flow-limit parameters and the flow_aggregator method; it does not carry any of the node-group / system-constraint / investment parameters (those stay on group).

Cumulative and instant flow limits

  • max_cumulative_flow - [MW] Maximum average flow, which limits the cumulative flow for a group of connection_nodes and/or unit_nodes. The average value is multiplied by the model duration to get the cumulative limit (e.g. by 8760 if a single year is modelled). Applied for each solve. Constant or period.
  • min_cumulative_flow - [MW] Minimum average flow, which limits the cumulative flow for a group of connection_nodes and/or unit_nodes. The average value is multiplied by the model duration to get the cumulative limit (e.g. by 8760 if a single year is modelled). Applied for each solve. Constant or period.
  • max_instant_flow - [MW] Maximum instantenous flow for the aggregated flow of all group members. Constant, period, time or period+time.
  • min_instant_flow - [MW] Minimum instantenous flow for the aggregated flow of all group members. Constant, period, time or period+time.

When authoring min_instant_flow / max_instant_flow as a Map, set the Map's index_name to period or time so the period-vs-time axis is unambiguous — see the note on naming the Map index above.

Flow aggregation method

  • flow_aggregator — choice of flow-aggregation method for this flowGroup (default none). Values:
    • none (default) — no aggregated output; the flowGroup exists only for flow limits / investment.
    • dispatch_plots_only — member flows are shown as aggregated bands inside a node group's dispatch table (the table produced by print_dispatch on a group). Produces no output file of its own.
    • standalone_aggregator_only — emits the flowGroup's own outputs: the per-period cumulative_flow and average_flow totals, plus a signed net-flow timewise series (see Results). Does not feed any node-group dispatch table.
    • both — both of the above.

Double-counting guard. If a flow arc belongs to two flowGroups that are both dispatch-bound (dispatch_plots_only or both), the arc is double-counted in the node-group dispatch balance; the model emits a loud validation warning in this case. For overlapping thematic aggregates, use standalone_aggregator_only — overlap is harmless there.

Some of the outputs are optional. They can be removed to speed up the post-processing of results. The user can enable/disable them by changing parameters of the the model entity:

  • output_node_balance_t: Default: yes. Produces detailed inflows and outflows for all the nodes for all timesteps. Mainly useful to diagnose what is wrong with the model.
  • output_connection__node__node_flow_t: Default: yes. The flows between the nodes for each timestep.
  • output_unit__node_flow_t: Default, yes. The flows from units to the nodes for each timestep.
  • output_ramp_envelope: Default, no. Includes seven parameters that form the ramp room envelope. How much there is additional ramping capability in a given node. (Parameter node_ramp_t)
  • output_connection_flow_separate: Default, no. Produces the connection flows separately for both directions.
  • output_unit__node_ramp_t: Default, no. Produces the ramps of individual units for all timesteps.

Additionally a model level option to exclude all node, connection and unit level outputs and only leave group and model level results. This will significantly increase the speed of importing data to the result database.

  • model: exclude_entity_outputs: Default, no. Excludes results on node, unit and connection level, but preserves group level results

A further option is to output everything from the model horizon. This changes the behaviour of a rolling model, since it would otherwise output only the realized part of the model horizon. This option will also output all variables from the stochastic branches when the model uses those. This option is useful for debugging and constructing stochastic/rolling model. Outputting the unrealized part of the model horizon will include unrealized costs in the cost calculations, so costs will be too high and this option should not be used for the final results.

  • model: output_horizon: Default, no. Produces outputs for the model horizon after rolling_solve_jump.

Reserves

The user defines reserve categories through reserve entity. Reserves are reservations of capacity (either upward or downward) and that capacity will not therefore be available for other use (flowing energy or commodities). There are three different ways how a reserve requirement can be calculated: timeseries, large_failure and dynamic.

  • Timeseries requires that the user provides a pre-defined time series for the amount of reserve to be procured in each time step.
  • Large_failure requires that the user defines the energy flows that could be the largest failure in the system. The highest possible failure (flow multiplied by large_failure_ratio) in each timestep will then set the reserve requirement for that timestep.
  • Dynamic means that there is a requirement based on user chosen energy flows - each participating flow is multipled by increase_reserve_ratio and then summed to form the reserve requirement. This can be useful for covering variability within timesteps. Also demand variability can be included through increase_reserve_ratio parameter in reserve__upDown__group entity.

When the same reserve category (e.g. primary upward) has more than one of these (timeseries, large_failure and dynamic) in use, then the largest requirement will apply for that timestep. If they are separated into different reserves, then they need to be fulfilled separately.

Reserve requirement is defined for groups of nodes. This means that multiple nodes can have a common reserve requirement (but it is also possible to make a group with only one node). One node can be in multiple groups and therefore subject to multiple overlapping reserve requirements. Only units can generate reserve, but connections can move reserve from one node to another (therefore, there is no impact if the nodes are in the same reserve group, but it can be useful to import reserve from outside the group).

Reserve groups

For reserve__upDown__group entities:

  • reserve_method - Choice of reserve method (no_reserve, timeseries_only, dynamic_only, large_failure_only or their combinations).
  • reservation - [MW] Amount of reserve required. Constant or time.
  • penalty_reserve - [CUR/MW] Penalty cost for not fulfilling the reserve requirement. Constant.
  • increase_reserve_ratio - [factor] The reserve is increased by the sum of demands from the group members multiplied by this ratio. Constant.

Reserve provision by units

For reserve__upDown__unit__node entities:

  • max_share - [factor] Maximum ratio for the transfer of reserve from the unit to the node. Constant.
  • reliability - [factor] The share of the reservation that is counted to reserves (sometimes reserve sources are not fully trusted). Constant.
  • increase_reserve_ratio - [factor] The reserve requirement is increased by the flow between the unit and the node multiplied by this ratio. Constant.
  • large_failure_ratio - [factor] Each unit using the N-1 failure method will have a separate constraint to require sufficient reserve to cover a failure of the unit generation (multiplied by this ratio). Constant.
  • is_active - Can the unit provide this reserve. Empty indicates not allowed. Use 'yes' to indicate true. Only exist in Toolbox 0.7, before 5/2024. It is replaced by Entity Alternative sheet.

Reserve transfer by connections

For reserve__upDown__connection__node entities:

  • max_share - [factor] Maximum ratio for the transfer of reserve to this node. Constant.
  • reliability - [factor] The share of the reservation that is counted to reserves (sometimes reserve sources are not fully trusted). Constant.
  • increase_reserve_ratio - [factor] The reserve is increased by generation from this unit multiplied this ratio. Constant.
  • large_failure_ratio - [factor] Each connection using the N-1 failure method will have a separate constraint to require sufficient reserve to cover a failure of the connection (multiplied by this ratio). Constant.
  • is_active - Can the unit provide this reserve. Empty indicates not allowed. Use 'yes' to indicate true. Only exist in Toolbox 0.7, before 5/2024. It is replaced by Entity Alternative sheet.

Parameter groups (metadata)

Spine's parameter_definition table carries an optional parameter_group_name field — a lightweight category label that the Spine DB editor uses to group related parameters visually. FlexTool historically left this field blank. Schema v43 introduced the mechanism with a narrow Outputs foothold, and schema v44 populates it fully: every parameter_definition row in the master template is now tagged with one of 15 groups.

The scheme has no semantic meaning to the solver — it is purely metadata consumed by the Spine DB editor and anything else that walks parameter_group_name. Names are lowercase snake_case (FlexTool convention). Priorities are sparse by design so future groups can slot in without renumbering.

The groups are organised in three informal tiers — asset physics (what the thing is and how it runs), decision overlays (investment, retirement, storage state, advanced dynamics, reserves, emissions, network, flow caps, user-defined constraints), and model plumbing (model-wide settings, solve configuration, timeline definitions, output toggles).

Group Priority Colour Purpose
basics 10 b3cde3 What the thing is and how it runs at steady state — default home for any parameter not clearly in a decision overlay.
investment 20 fdbf6f Capacity expansion: invest costs, methods, cumulative bounds, lifetime, discount rate, annualised fixed costs, capacity margin.
retirement 25 ffb870 Retirement/divestment bounds and salvage value.
storage 30 cab2d6 Storage state variable, cross-solve and horizon-edge behaviour, reference price/value.
tech_advanced 35 b2df8a Unit commitment (startup, min times), ramp rates, time delays — advanced operational dynamics.
reserve 40 fb9a99 Spinning / standing / N-1 reserve provision parameters.
emission 45 ccebc5 CO2 accounting: fuel content, group caps, prices.
network 50 80b1d3 DC power flow, inertia, non-synchronous share — network-aware modelling.
flow_limit 55 fccde5 Group-level aggregated flow caps / floors and loss-of-load share control.
constraint 70 bc80bd User-authored linear constraints plus the coefficient parameters on other entities that couple into them.
model 80 d9d9d9 Whole-model scope, horizons, numeric framing (version, periods, inflation).
solve_basics 85 bebada Per-solve knobs a typical user touches (solver, mode, periods, years).
solve_advanced 87 9f94c6 Per-solve internals: solver options, rolling/nested/stochastic structures, cross-solve storage handoff.
timeline 90 ffed6f Time-structure definitions consumed by solves (timestep duration, timeset metadata).
output 95 a6cee3 Toggles that shape what the run writes to outputs.

Convention for new parameters

When you add a new parameter definition, also assign it a parameter_group_name. Use the table above to pick the group — err on the side of matching why the user sets the parameter, not where it is mathematically consumed (e.g. constraint_state_coeff on node belongs to constraint, because the user writes it to participate in a user-defined constraint, not to configure storage).

Both the group definition and the tag are set inside the same db_migration step:

db.add_update_item("parameter_group", name="my_group",
                   color="a6cee3", priority=60)
db.add_update_item("parameter_definition",
                   entity_class_name="unit",
                   name="my_param",
                   parameter_group_name="my_group")

The colour is a 6-digit hex string with no leading #. Priority controls display order in the Spine DB editor — pick a value that fits the tiered scheme above (asset physics 10–15, decision overlays 20–55, constraints 70, plumbing 80–95).

After editing the migration, run python -m flextool.update_flextool.sync_master_json_template to regenerate schemas/spinedb_schema.json — the group assignment is exported as the 6th slot of the parameter-definition tuple. The coverage pytest (tests/test_parameter_groups_coverage.py) fails loudly if any parameter is left ungrouped.

Additional entities for further functionality

  • constraint: a user-defined linear constraint between flow, state, and capacity variables on nodes, units and connections. The left-hand side is assembled by tagging the relevant entities with the matching coefficient parameter (constraint_flow_coeff on unit__inputNode / unit__outputNode / connection__node, constraint_state_coeff on node, constraint_invested_capacity_coeff / constraint_cumulative_pre_built_capacity_coeff on node / unit / connection); the constraint entity itself carries:

    • sense - The sense of the constraint: greater_than, less_than, or equal.
    • constant - A constant offset placed on the right-hand side of the constraint (typically zero). Constant or period.
